Classic Gauge Kit
CS-AB717
Ships free, Monday
In Stock
$599.00
5.00/5 with 4 reviewsCravenSpeed
Scratch and Dent?
Occasionally, we get new parts or returns that have cosmetic blemishes that do not affect the functionality of the part. Rather than toss them in the scrap bin, we offer the parts for sale at a deeply discounted price. In many cases, the location of the blemish prevents it from even being seen once the part is installed. Like all of our products, we still guarantee it to be the correct fit and to work properly and will offer to exchange components should anything need adjustment, or simply set up a free return if you decide that you are not happy with the product. Our normal return policy applies to all scratch and dent products.
LIFETIME
WARRANTY
FREE US
SHIPPING
100% Complete Package
The goal of our classic gauge kits is to make installing auxilliary gauges easier than ever by including every last piece of hardware you will need to install the selected gauges in your car. From sender adapters, to wiring, the gauge mounts, the gauge itself, everything down to the last zip tie, we've included all of the pieces you'll need to get the job done. Our kits feature high quality analog gauges from Marshall Instruments which are Made in the USA.
Oil Pressure
An oil pressure gauge provides real-time monitoring of your engine's oil system, allowing for early detection of problems like leaks, pump failures, or clogged filters. In the event of a major leak or catastrophic failure of the oil system, an oil pressure gauge can prevent terminal damage to your engine by giving you time to shut the car down. The gauge provides a continuous reading of oil pressure, allowing you to monitor the engine's health under various driving conditions.
Tapless Adapter
On 2nd Gen MINIs we use our Tapless Adapter which piggybacks off of the factory oil pressure sensor on the oil filter housing and provides a remote 1/8 NPT port to install the oil pressure sending unit. This version of the kit includes a Marshall Instruments oil pressure gauge which measures oil pressure from 0 - 100 psi and has a silver face to match the factory cluster.
This kit is compatible with 2nd Gen LCI MINIs which use the N16 or N18 engine.
Water Temp
While most vehicles have some form of water tmperature gauge built in, they don't offer precise measurement, and instead show a vauge 'cold' or 'hot' range. The Marshall Instruments warter temp gauge displays the exact temperature, which can not only prevent overheating but also aid in diagnosing cooling system issues. Beyond that, the water temp gauge can help you protect your engine during performance driving.
The Hot Link
On 2nd Gen MINIs, we utilize our Hot Link sender adapter which installs inline in the upper radiator hose replacing an existing coupling. The Hot Link sender adapter is compatible with both manual transmission and automatic transmission vehicles which have a return line teed into this coupler. This kit features a Marshall Instruments water temperature gauge which reads temperature in Fahrenheit from 100° - 260° and has a silver face to match the factory cluster.
Gauge Mount

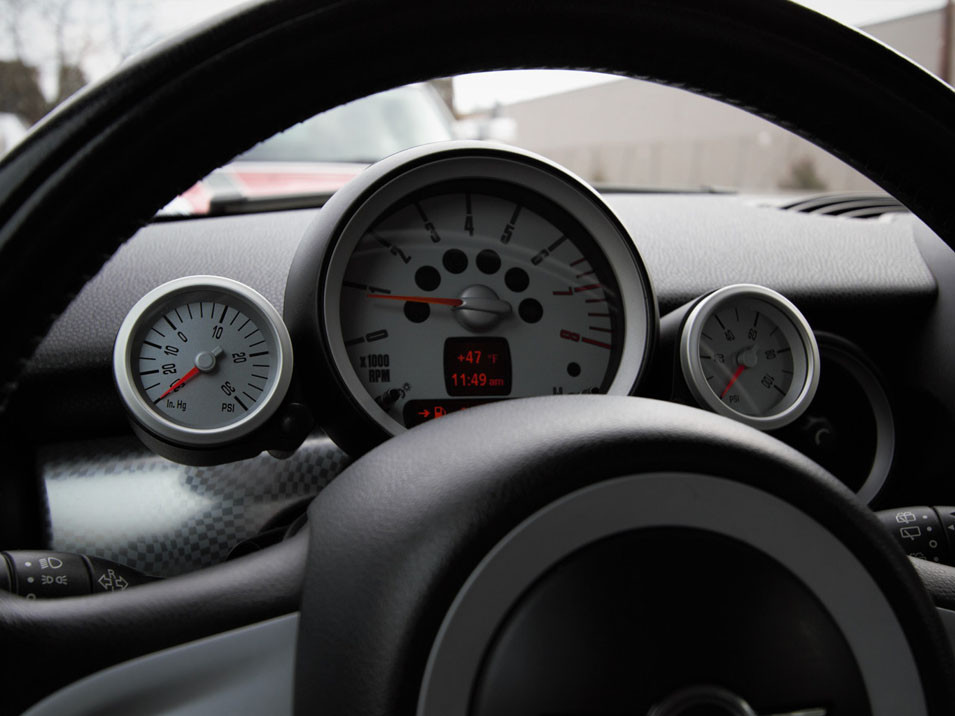

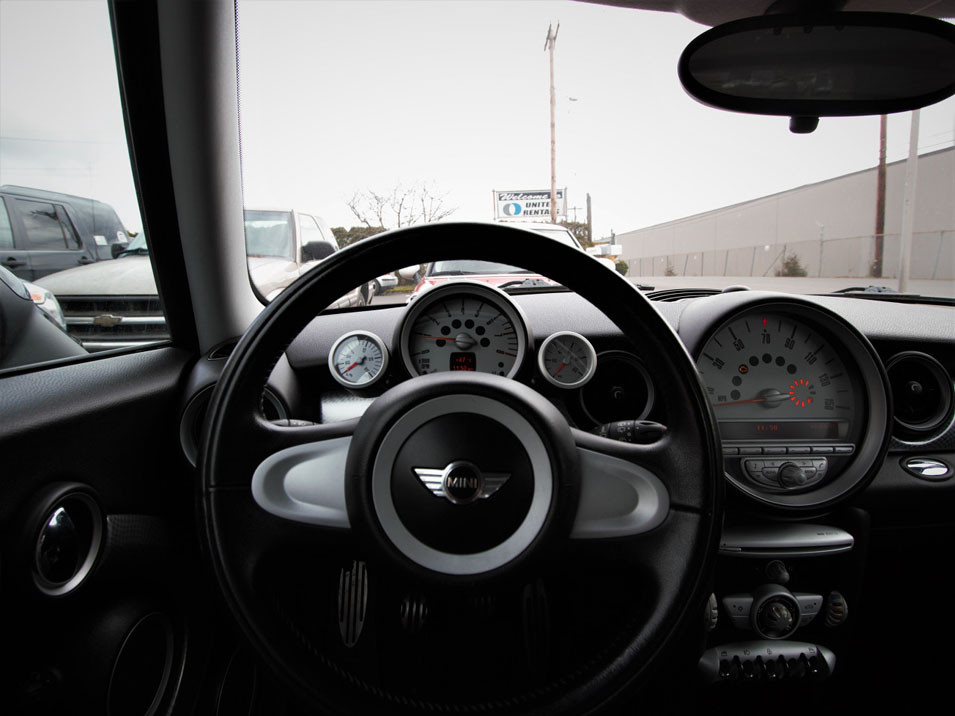

This kit includes our dual guage mount for the **make** **model** **gen**.The bracket simply attaches to the back of the tachometer and provides a mounting location for two of our 52mm gauge cups. The gauges will be mounted below the tachometer symetrically on either side.
- Reviews
- Questions
Korea, Republic ofTop product
Tricky to install, but made easy with the supplied instructions. Great product, love having the extra engine numbers provided by these gauges and they look amazing and just like they should be there.
CanadaInstal instructions
For 1000 bucks cad, i would of expected thorough installation instructions, wow, super unimpressed.
CravenSpeed.com
Hi Heath, Did you have some trouble with the install? All our instructions generally include detailed pictures of critical components and reviewing the ones for the Boost and Oil Pressure kit they look pretty detailed. We'll be reaching out to get a little more feedback on your install trouble just so we can make sure we're not missing anything.
United StatesComplete Oil Pressure/Temp Gauge Kit for 2016-2022 Mazda Miata MX-5
Perfect fitment with precision-tooled parts! Outstanding build overall!! Highly recommended!!!
United StatesSUPER COOL. SHOULD HAVE HAD THESE FROM THE FACTORY
Probably should've taken me less time to install if I'd started earlier in the day. Taking my time, I think the whole thing took about 8 hours total. Love the look and the functionality of the extra gauges. They fit in with the dash like they belong there. Hardest part is getting the oil pressure sender out.
United StatesBad ***
Everything could have not fit any better. Great to have mechanical gages installed. Oil pressure and water temp set off the dash with great looks. Sure am glad I went in this direction in gages. Thanks
