Gemini Phone Mount MagSafe Install Guide - RAM Gen 5

THANK YOU for purchasing the Gemini Phone Mount for RAM Gen5 from CravenSpeed. This product is made from the highest grade materials, and is guaranteed to be free from defects.

You can buy our CravenSpeed Gemini Phone Mount MagSafe for RAM Gen 5 here

Parts Included:

  • 1x CravenSpeed Phone Mount Bracket
  • 1x ΒΌ-20 Button Head Screw
  • 1x 17mm Ball Stud
  • 1x Philips Head Screw
  • 1x Square Foam Pad
  • 1x MagSafe Base
  • 1x Adhesive Ring

Tools Required:

  • Philips Screw Driver

The installation time for this product is approximately 5-10 minutes.

If you have any questions/or concerns about this installation, feel free to send us an email at support@cravenspeed.com . We are always happy to help.

Installation Process

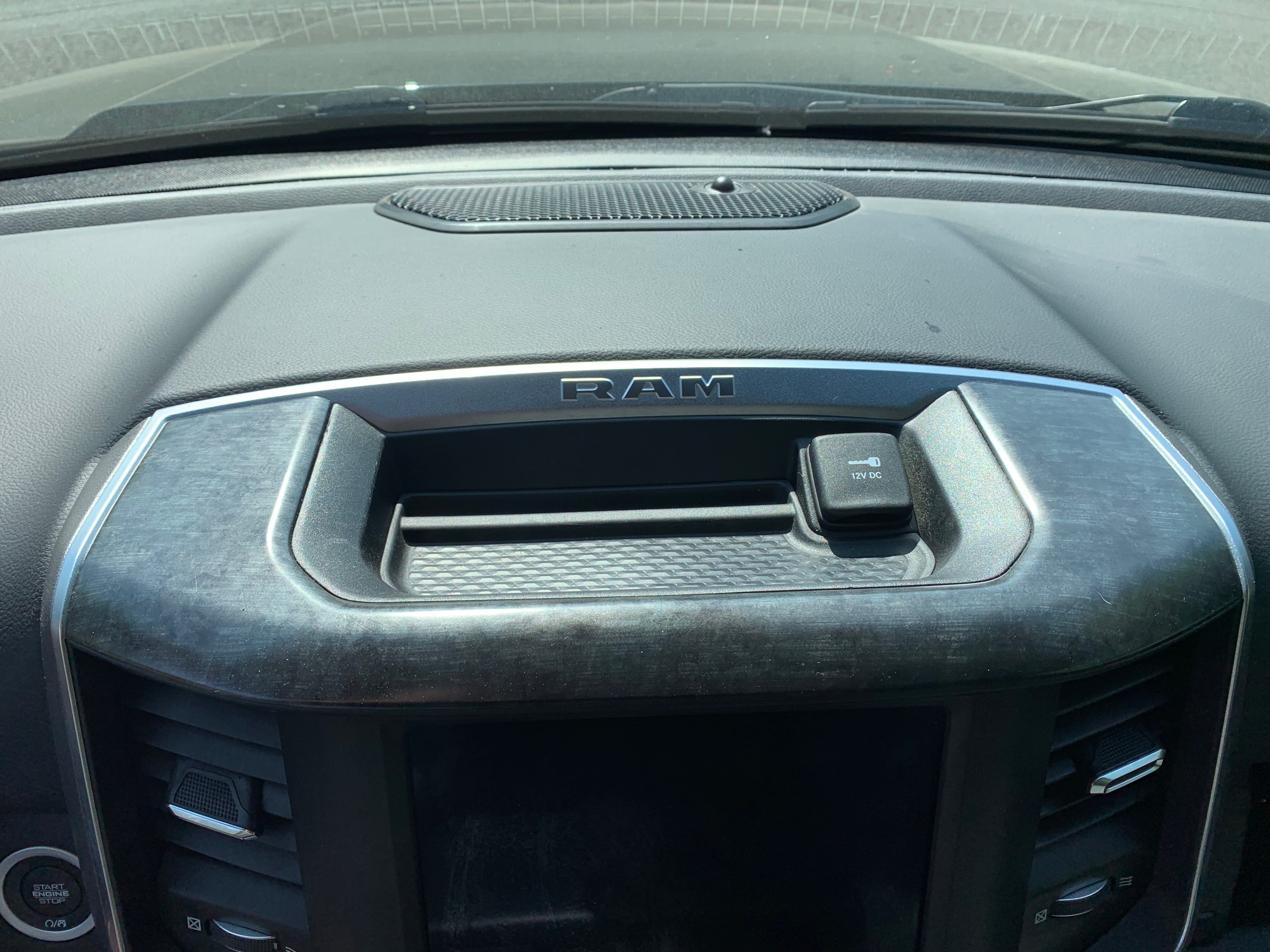

    The RAM Gen5 Gemini Phone Mount is installed into the left side of the utility pocket located at the top of the center console.

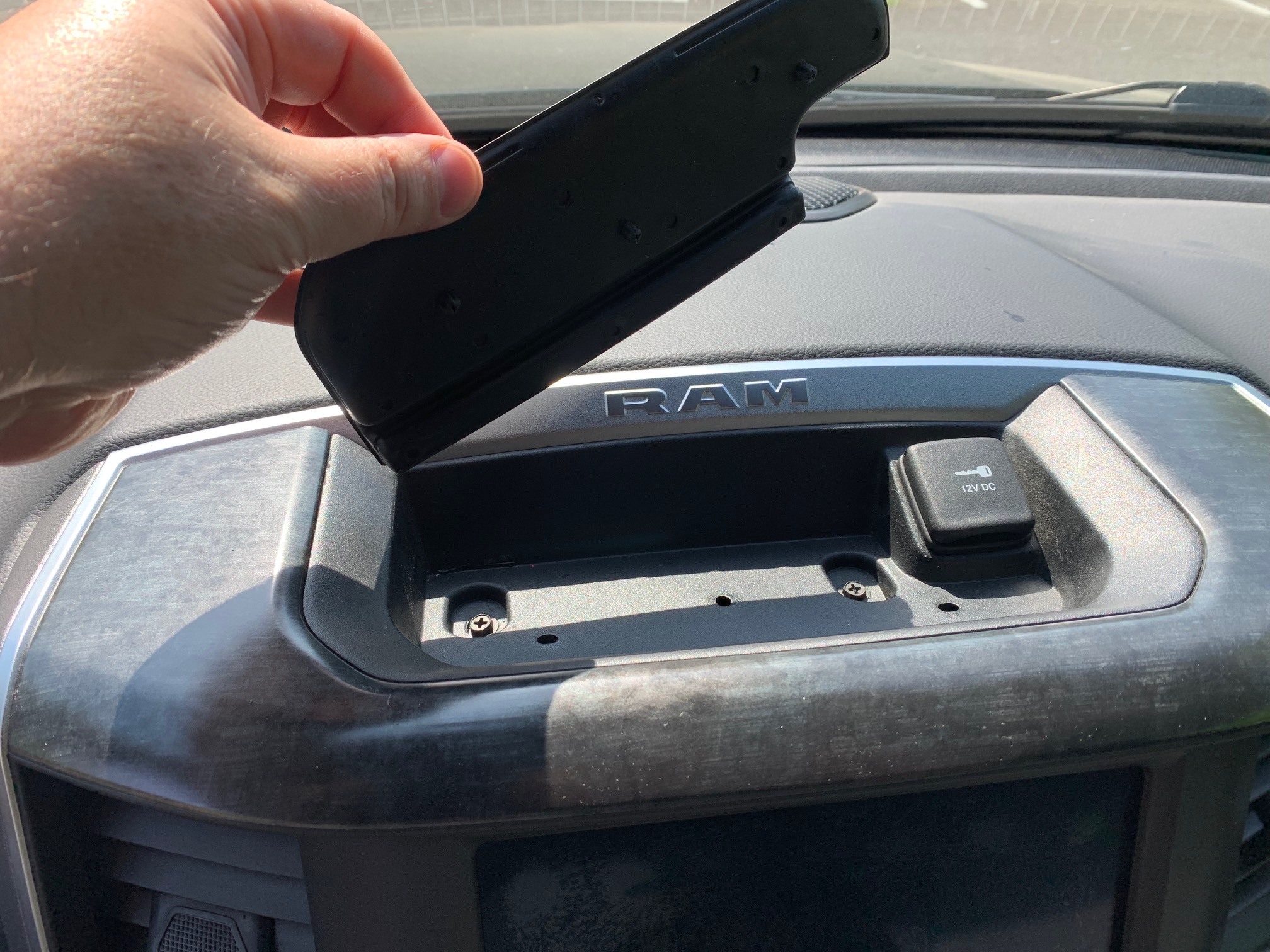

    To access the mounting location, simply grasp the plastic utility pocket liner and pull it out.

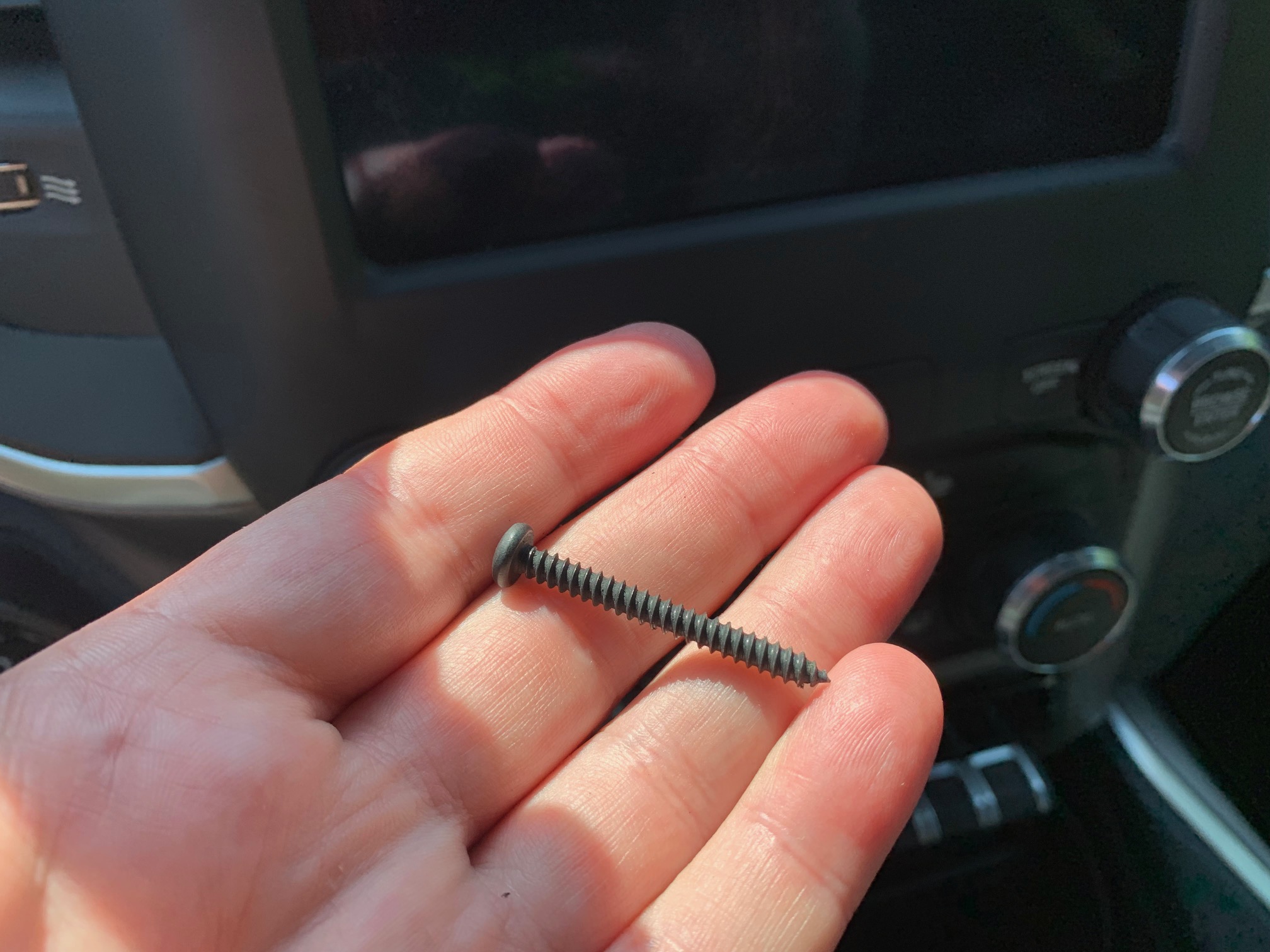

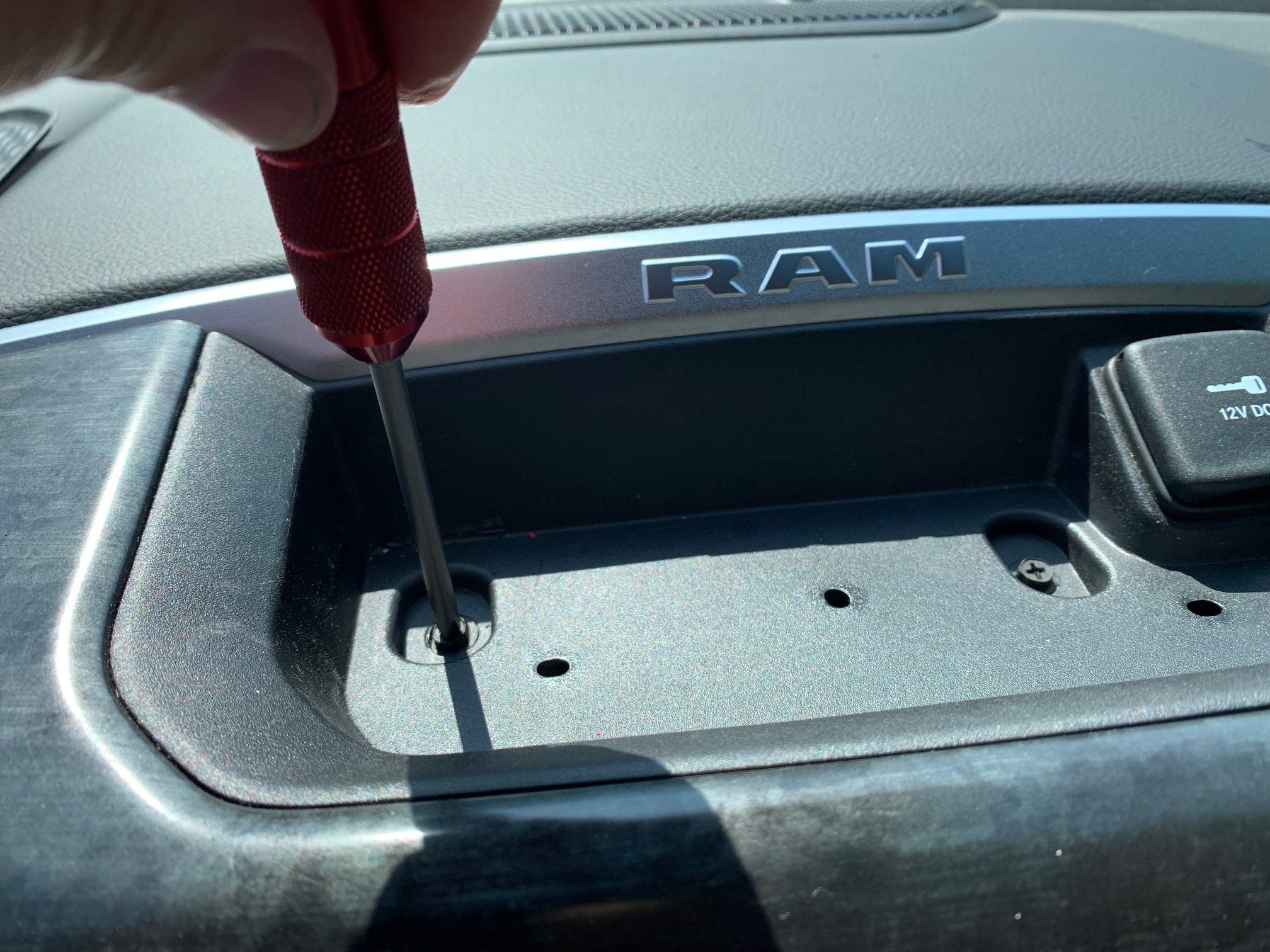

    Remove the left side Philips head screw.

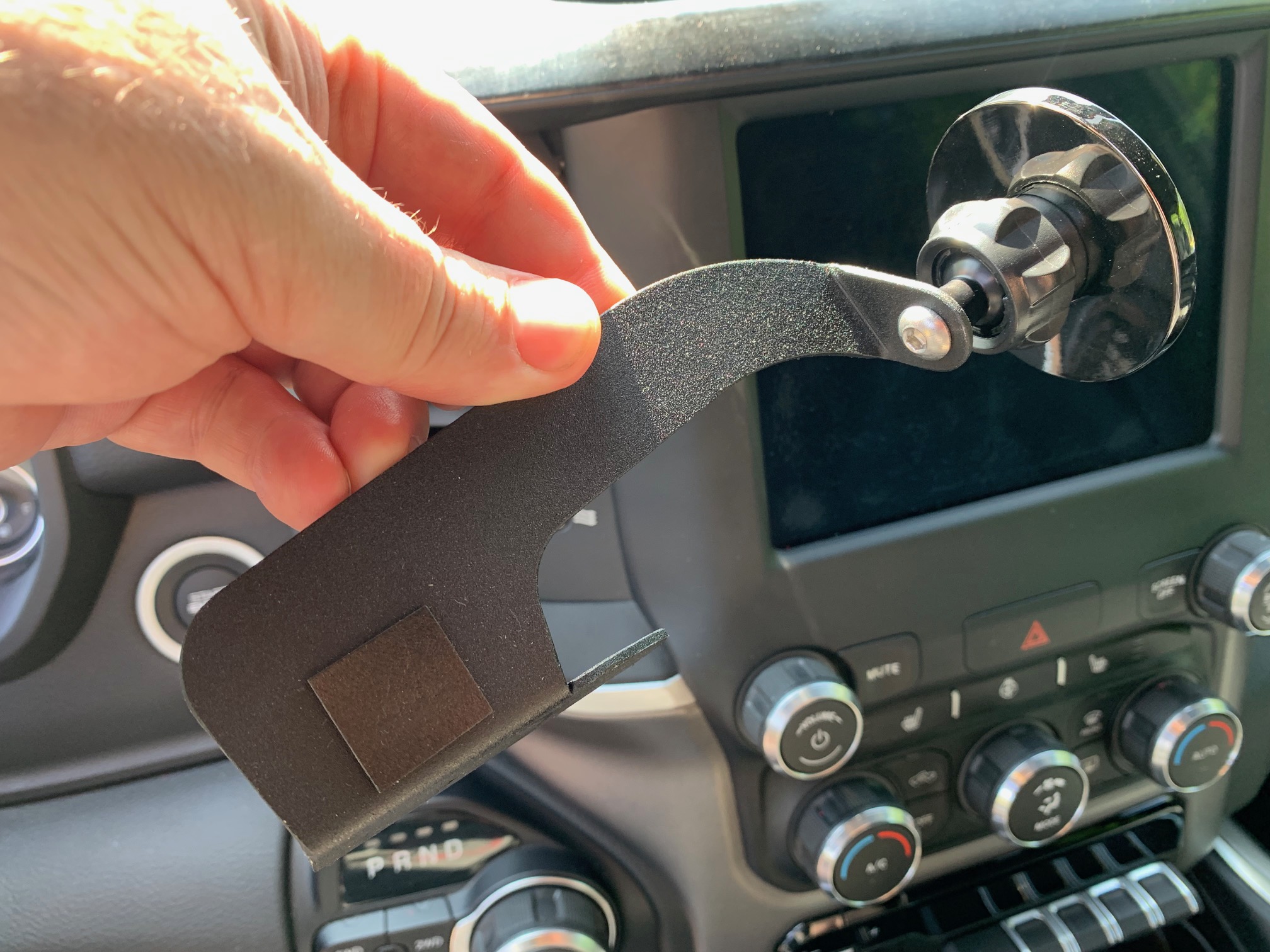

    Take the pre-assembled bracket and apply the square foam pad to the driver side of the bracket as show in the following image.

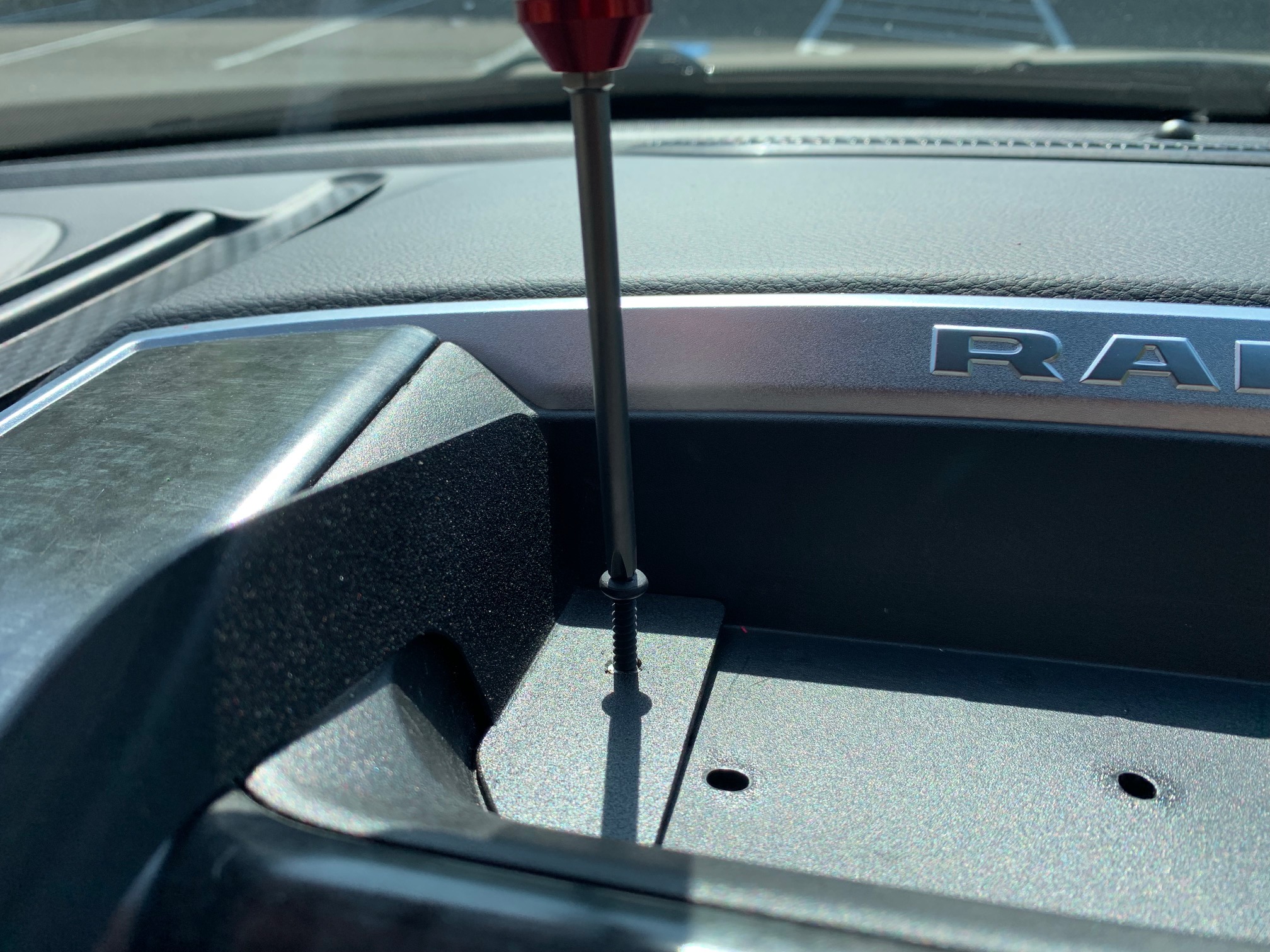

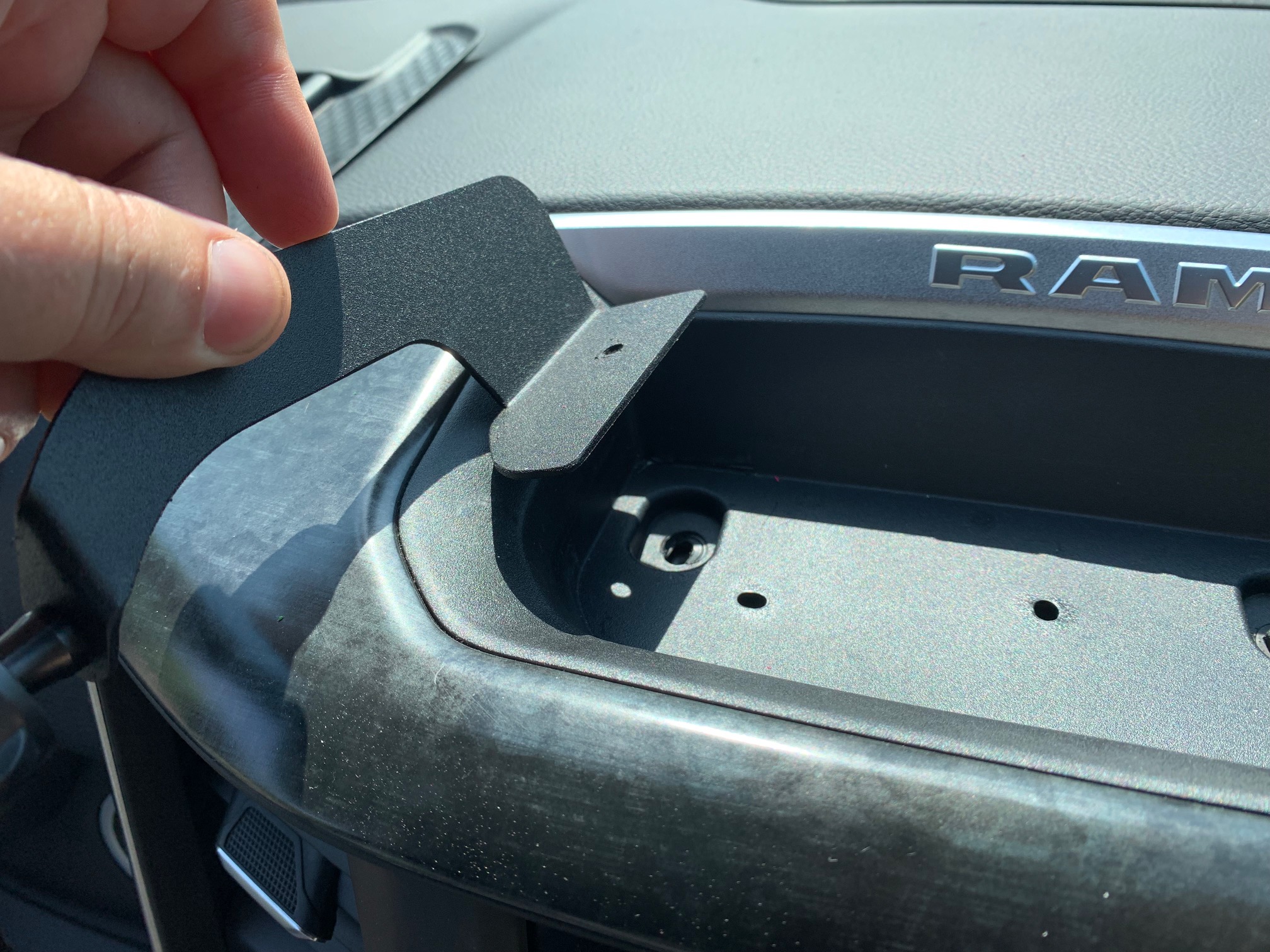

    Set the phone mount bracket into the utility pocket and tighten the bracket into place with the supplied longer Philips head screw. Do not over tighten.

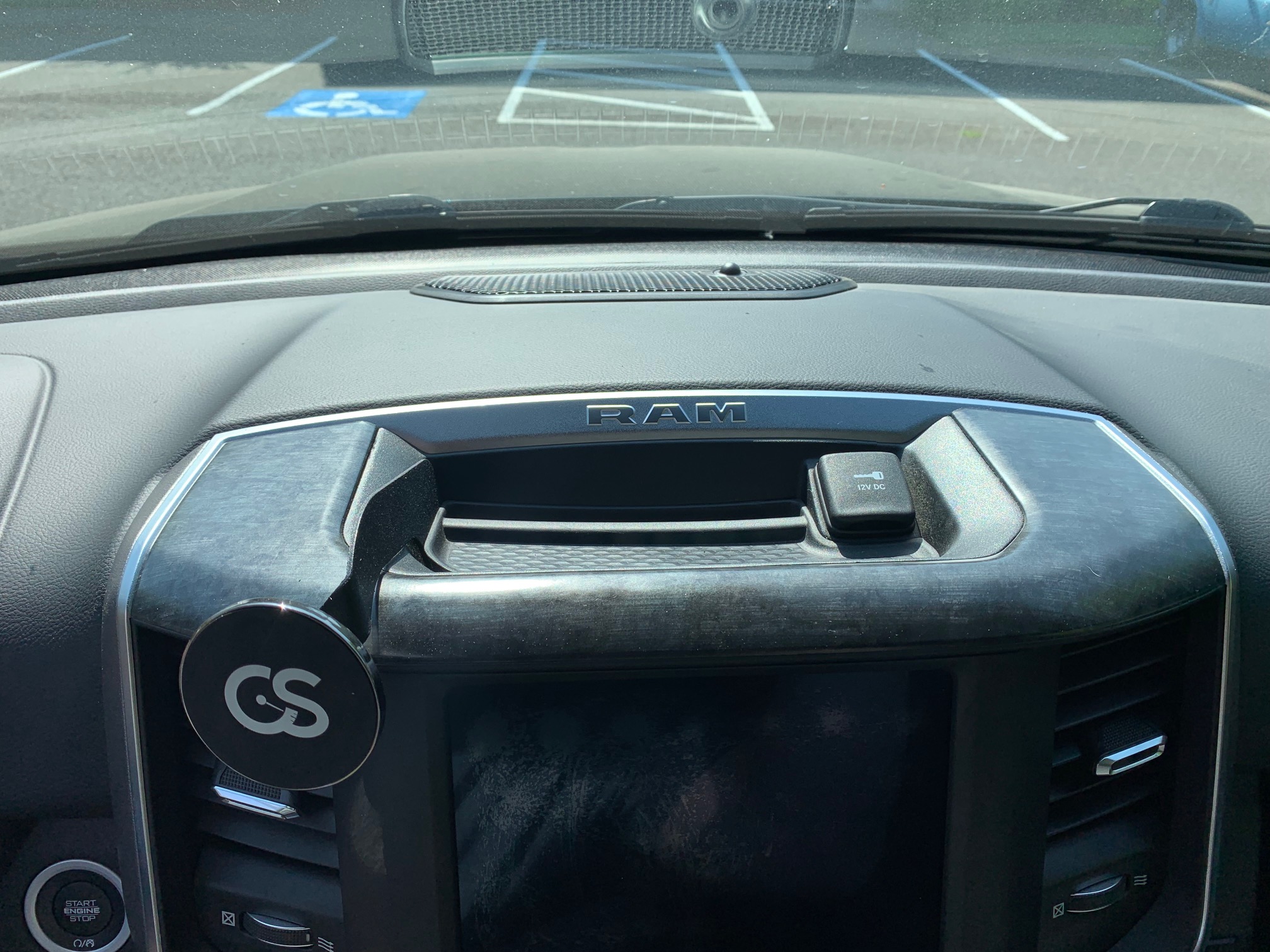

    Reinstall the plastic utility pocket liner. If your phone is Qi equipped you are ready to use the mount. If your phone is not, apply the adhesive metal ring included with the mount to the back of your phone or case.

!
